TREADMILL DC MOTOR SPEC. DATA SHEET

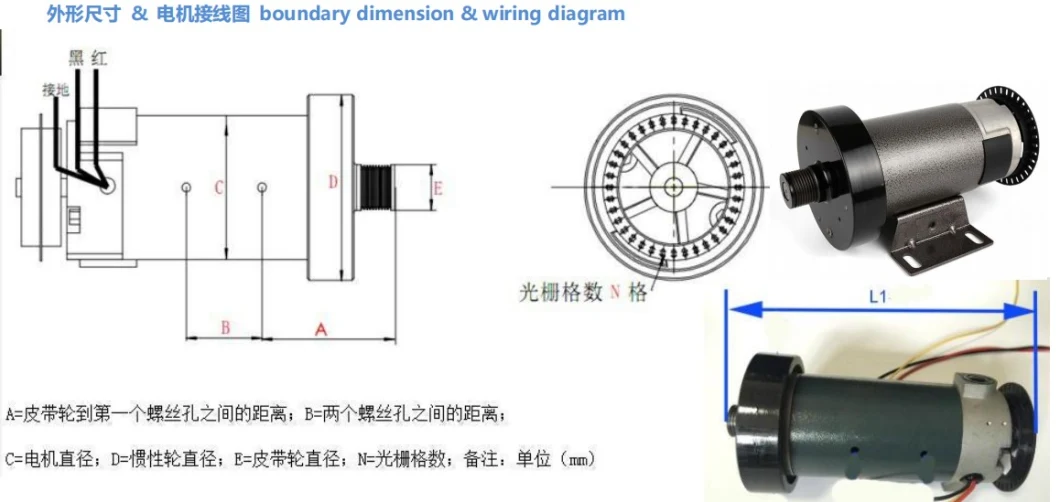

HP | VOL. VDC | SPEED RPM | CUR. A | A mm | B mm | C mm | D mm | E mm | L1 (mm) | WEIGHT KG/PC | NOTE | |
1.0 | 90/110 | 4500 | 4 | 87 | 50 | 90 | 120 | 30 | 234 | 6 | A-1.0HP | B size Without Mounting support |
1.0 | 180/220 | 4500 | 4 | 87 | 50 | 90 | 120 | 30 | 234 | 6 | B-1.0HP | B size Without Mounting support |
1.0 | 90/110 | 4600 | 4 | 110 | 45 | 95 | 130 | 30 | 263 | 6 | C-1.0HP | With Mounting support instead B |
1.0 | 180/220 | 4600 | 4 | 110 | 45 | 95 | 130 | 30 | 263 | 6 | D-1.0HP | With Mounting support instead B |
1.0 | 90/110 | 4600 | 5 | 110 | 45 | 103 | 140 | 35 | 263 | 6.5 | E-1.0HP | With Mounting support instead B |
1.0 | 180/220 | 4600 | 5 | 110 | 45 | 103 | 140 | 35 | 263 | 6.5 | F-1.0HP | With Mounting support instead B |
1.5 | 90/110 | 4800 | 7.5 | 110 | 45 | 103 | 140 | 35 | 283 | 7.5 | A-1.5HP | With Mounting support instead B |
1.5 | 180/220 | 4800 | 7.5 | 110 | 45 | 103 | 140 | 35 | 283 | 7.5 | B-1.5HP | With Mounting support instead B |
2.0 | 90/110 | 4800 | 10 | 110 | 45 | 125 | 150 | 35 | 300 | 10.5 | A-2.0HP | With Mounting support instead B |
2.0 | 180/220 | 4800 | 10 | 110 | 45 | 125 | 150 | 35 | 300 | 10.5 | B-2.0HP | With Mounting support instead B |
2.5 | 90/110 | 4800 | 12.5 | 110 | 45 | 125 | 150 | 35 | 315 | 12 | A-2.5HP | With Mounting support instead B |
2.5 | 180/220 | 4800 | 12.5 | 110 | 45 | 125 | 150 | 35 | 315 | 12 | B-2.5HP | With Mounting support instead B |
3.0 | 90/110 | 4800 | 15 | 110 | 45 | 125 | 150 | 35 | 330 | 13 | A-3.0HP | With Mounting support instead B |
3.0 | 180/220 | 4800 | 15 | 110 | 45 | 125 | 150 | 35 | 330 | 13 | B-3.0HP | With Mounting support instead B |
