Cooling/Water Cooling BLDC Motor 48v /72v /96v 20kw for Electric Scooter,Electric Motorcycle Drive Solution Kits Drive Your Motorbike up to 100mph Convert your gasoline powered motorcycle, scooter into electric version easily!                          &nb

Featured Products

Cooling/Water Cooling BLDC Motor 48v /72v /96v 20kw for Electric Scooter,Electric Motorcycle Drive Solution Kits Drive Your Motorbike up to 100mph

Convert your gasoline powered motorcycle, scooter into electric version easily!

                                         Clean, Quiet, Efficient, Light Weight, Monstrous Powerful, and Affordable.

Golden Motor 5kw Brushless DC Motor, Electric Motorcycle Motor,Electric Car Motor

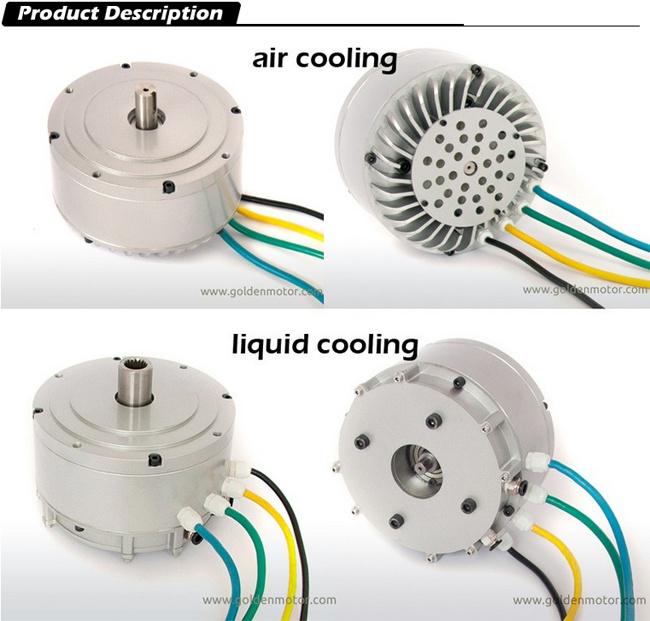

Picture of the 1.5KW -10KW BLDC electric motorcycle motor

20KW BLDC motor
Golden Motor 5kw Brushless DC Motor, Electric Motorcycle Motor,Electric Car Motor

3KW BLDC motor
Golden Motor 5kw Brushless DC Motor, Electric Motorcycle Motor,Electric Car Motor

5KW  BLDC motor
Golden Motor 5kw Brushless DC Motor, Electric Motorcycle Motor,Electric Car Motor

10KW BLDC motor
Golden Motor 5kw Brushless DC Motor, Electric Motorcycle Motor,Electric Car Motor

15KW BLDC motor
Golden Motor 5kw Brushless DC Motor, Electric Motorcycle Motor,Electric Car Motor


Model: HPM-20KW -- High Power BLDC Motor
 Voltage:72V/96V/120V
1. Voltages: 72V-120Vdc
2. Rated power: 20-25KW
3. Peak power: 50KW
4. Speed: 3200-6000rpm
5. Rated torque: 80 Nm
6. Peak torque: 160 Nm
7. Efficiency: >90%
8. Dimensions: 30x30x25cm
9. Weight: 39kg(20KW),27kg(15KW)
10: Cooling: liquid cooling

Golden Motor 5kw Brushless DC Motor, Electric Motorcycle Motor,Electric Car Motor
Features:
Long working life (>20,000 hours)
Low noise, high torque
Excellent performance characteristics
High efficiency (>90%)
High reliability
Rated voltage : 48V-120 VDC
Rated power : 3KW
Rated speed: 2000-6000 rpm
Stepless speed control, dual-direction

ItemDescription
BLDC Motor    (HPM5000BL)            Liquid coolingVoltage:48V/72V/96V/120V
Rated Power:3KW-7.5KW
Efficeincy: 88%
Speed: 2000-6000rpm (customizable)
Casing: AluSmartum
Length (height): 126mm
Diameter: 206mm
Shaft: customizable
Features: Compact design,Water resistent, Stainless Steel Shaft, Liquid Cooling
Applications: Electric car, electric motorcycle, electric tricycle, electric golf carts, fork lift, electric boat, etc.
BLDC Controller           (For 5KW Motor)Type: HPC300H Series(For 5KW Motor)
Voltage Range:48V/72V/96V
Rated Current (Max):360A/300A/240A
Weight:2.2Kgs
Dimensions:192x146x77mm
Features: Programmable via USB port, Fuse breaker, Regen Braking, Temperature sensoring
ContactorTo protect the controller
Spare Wiring HarnessModel: CA-201 -- HPC Controller Wiring Harness
23-pin Water-Resistent Connector
Dynamic Montoring Connector
Program KitModel: PI-400 -- HPC Controller Programming Kit
Easy Installation for PC/laptop with Windows OS
Easy USB Port Connection
Setup Parameters without Power-on Controller
Monitor Motor Performance Dynamically
Foot ThrottleModel: FSC-010 -- Foot Throttle
Output Voltage: 0-5V
Material: casted aluSmartum
Features: Water resistent
OtherGear bridge and battery is optional

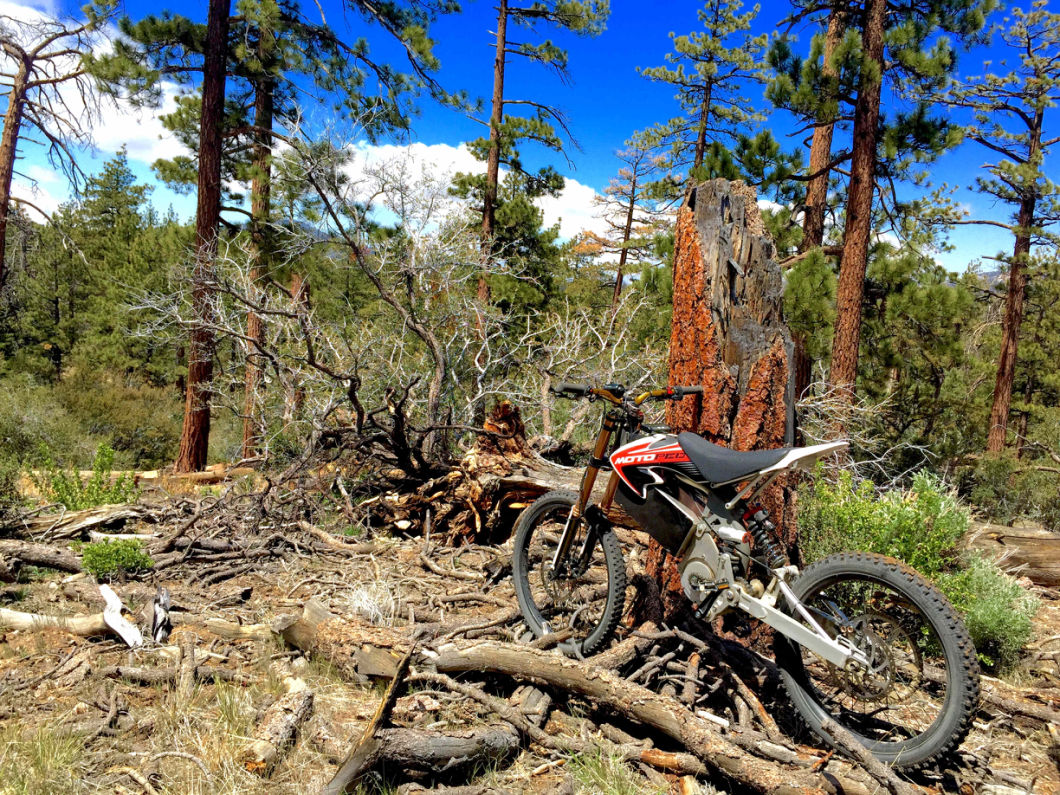

Application of Electric motorcycle  Conversion Model
Golden Motor 5kw Brushless DC Motor, Electric Motorcycle Motor,Electric Car Motor
Golden Motor 5kw Brushless DC Motor, Electric Motorcycle Motor,Electric Car Motor
Golden Motor 5kw Brushless DC Motor, Electric Motorcycle Motor,Electric Car Motor

Golden Motor 5kw Brushless DC Motor, Electric Motorcycle Motor,Electric Car Motor

Golden Motor 5kw Brushless DC Motor, Electric Motorcycle Motor,Electric Car Motor
