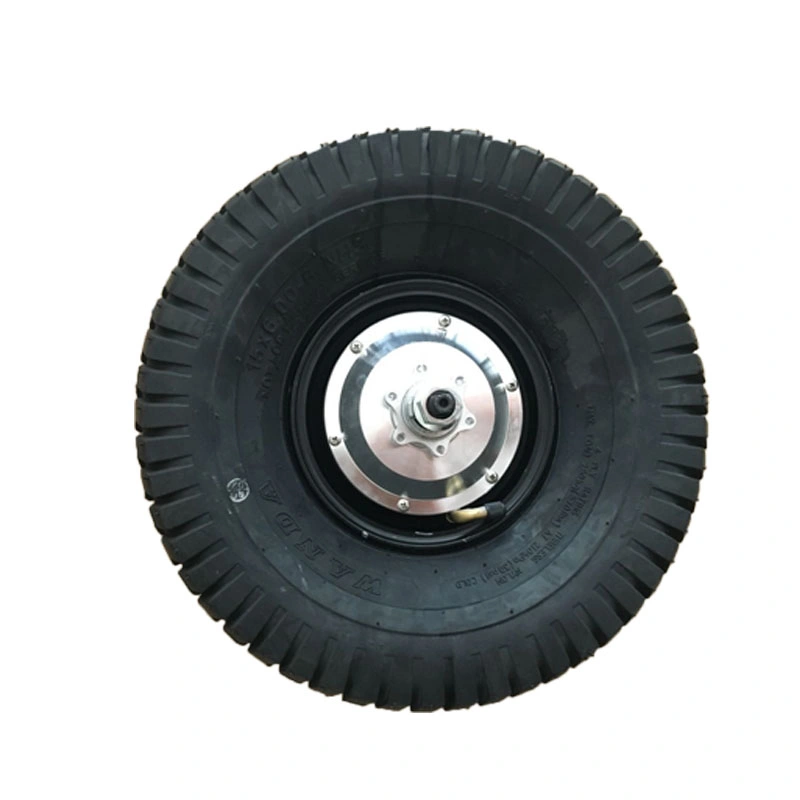

E-Tech 15 Inch Low Speed ​​250W 350W 400W DC Brushless Motor Hub

Quick DetailsPlace of Origin: Sichuan, China (Mainland)Brand Name: ETECHCertification: CECommutation: BrushlessProtect Feature: WaterproofContinuous Current(A): 1.3-12.4AEfficiency: IE 4Noise: 55dbMotor type: Geared Brushless DC MotorUsage: Robotics, Automated Guided Vehicle, etc.Speed(RPM): Max 800(r/min)Voltage: DC 24V/36

Featured Products

Quick Details

Place of Origin: Sichuan, China (Mainland)
Brand Name: ETECH
Certification: CE
Commutation: Brushless
Protect Feature: Waterproof
Continuous Current(A): 1.3-12.4A
Efficiency: IE 4
Noise: 55db
Motor type: Geared Brushless DC Motor
Usage: Robotics, Automated Guided Vehicle, etc.
Speed(RPM): Max 800(r/min)
Voltage: DC 24V/36V/48V
Power: MAX:400W
Speed: MAX:6-8km/h
Diameter with tire: 380mm
Brake: EBS brake disc brake

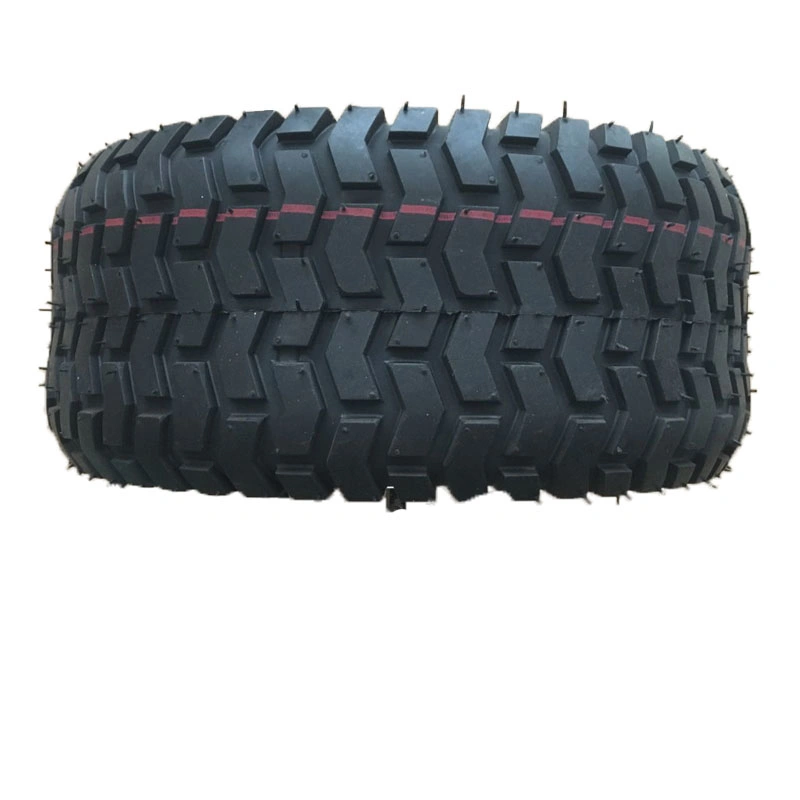

Tire: inflatable tire
Weight: 7KG with tire
Cable: 3 motor phases, 5 hall sensor, 2 encoder wire.


We provide both single and double shaft version
We provide both silver color and black color
We provide motor with encoder
If you need any more information,  plz feel free to contact us

E-Tech 15 Inch Low Speed 250W 350W 400W DC Brushless Electric Motor Hub
E-Tech 15 Inch Low Speed 250W 350W 400W DC Brushless Electric Motor Hub
E-Tech 15 Inch Low Speed 250W 350W 400W DC Brushless Electric Motor Hub

Accessories from us

E-Tech 15 Inch Low Speed 250W 350W 400W DC Brushless Electric Motor Hub

All hub motor wheel from us

E-Tech 15 Inch Low Speed 250W 350W 400W DC Brushless Electric Motor Hub






FAQ

1. Factory or trader? We are factory, the source of the supply chain.
2. Delivery time? - Sample: 10 days.  Bulk order: 15-20 days.
3. Why choose us?
* Factory Price & 24/7 after-sale services.
* 3 more quality test before products leave factory.
* Long life, durable and multi-application.
* Self Protection system avoids damage when overloaded or abruptly stoped.
* High efficiency and high torque available in small diameter.
* All products are made according to ISO 9001, CE, ROHS, CCC, UL and GS requirements.
